With its cylindrical column design, adds aspecial value to any site where decorative flourish isa priority. TANSA turnstiles accept and work with a wide variety of proximity, magnetic, or biometric readers. LTT 303E series turnstile, which can be used internallyand externally, is constructed with stainless steel. It’salso available painted with electrostatic powder paintin a color of your choice. The greatest advantage of the mechanism is itsmonoblock welded construction. In some turnstilebrands, the mechanism is attached to the turnstile bodyby bolts and screws. In contrast, the head mechanismof TANSA turnstiles are manufactured as a singleintegrated block welded to the body. Thanks to suchrobust construction, there is no slacking or deformationin the turnstile mechanism over time. A TANSA turnstile can be used both unidirectionallyand bidirectionally thanks to its electromechanicdesign. Selection of direction can be configured easilyby the client’s authorized security personnel. Accessright can be denied or granted remotely. All mechanical hardware and electromechanicalcontrol systems are manufactured at TANSA’s ownproduction plants.

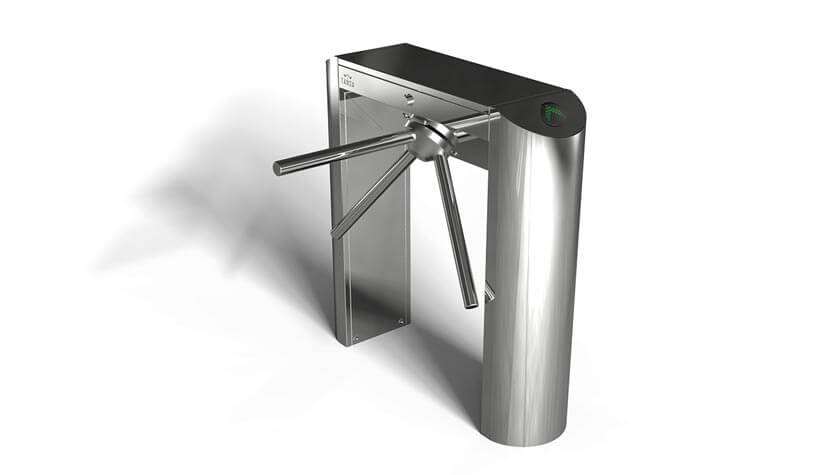

LTT 303 E
Operation: Adjustable manual passage to either direction.
Frame: Two-legged, angular lid, AISI 304 quality stainless steel. Optional: AISI 316 quality.
Core and Arms: CNC-machined, aluminum cast core and polished. Ø40×2.5 mm aluminum arms Optional: Stainless steel arms.
Fucntions: Passage information (NC: Normally close or NO: Normally open).
Mechanism: AISI 304 quality stainless steel. Fail-Safe (arms drop during power failure) Optional: Fail Lock.
Emergency Mode: The arms fall down with the signal received from fire detection system. Optional: Drop arm.
Indicator: Direction LEDS for both directions. Optional: Upper lid.
Operating Voltage: 100-230 VAC. 47-60 Hz
Power Consumption: 3.8W during passage, 4.1W during standby
Operating Temperature: -10° / +70° Optional: With heater -40°
Passage Speed: ~25 persons / minute.
Passage Width: 45-50 cm
Weight: ~42 kg
Security Level: Deterrent
Areas of Use: Suitable for indoor and outdoor use
Accessories: Outdoor cover. Unauthorized passage notification system. Button control unit. Remote control unit. Stainless steel bottom plate. Plexiglass reader assembly kit. Reader assembly apparatus. Meter. RS232 communication unit.
Category: Gate turnstiles
