Virdi AC-5000

Graphic User Interface provides the easy navigation in the system and allows for personalisation of the display (eg. Background, corporate logo etc.)
Displays user’s picture during authorisation, using 1.3M Pixel Digital Camera and allows administrator to compare picture log data with user’s name or ID
Enables firmware upgrade and backup of Fingerprint templates

CPU	400 MHz 32 Bit RISC CPU
Template Capacity	40 000 templates (20 000 users)
Log Capacity	61000 events
Cards Supported	125 Khz Proximity (AC-5000RF) 13,56 MHz Smart Card (AC-5000SC)
Keypad	Touch Keypad LED backlit
LCD Display	(320× 240) 2,8''TFT Color Screen

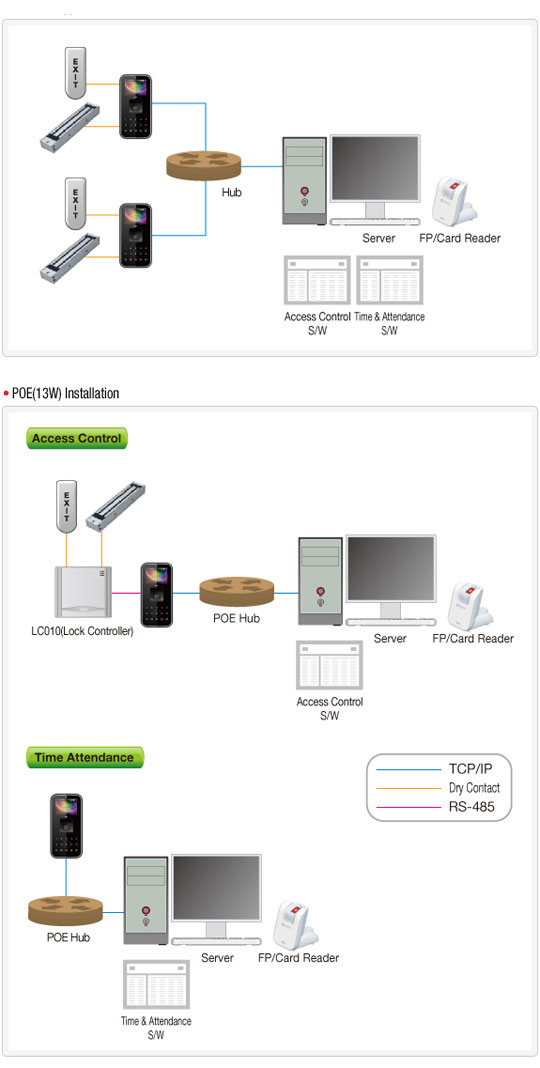

Communication	RS-485, RS-232, Wiegand In&Out
Intercom interface	No
Supply voltage	Max VDC 12V ~ 24V
Operation Environment	-20 ~ 50 °C
Fingerprint Sensor	White Optical Sensor
Sensor dimensions	15 × 17 mm
Resolution	500 DPI
Verification time (1:1)	< 0.5 s
Identification time (1:N)	< 1 s
FRR / FAR	0.1% / 0.0001%
Application	Access Control, Time & Attendance
Dimensions	88mm(W)x175mm(H)x43.5mm(D)
